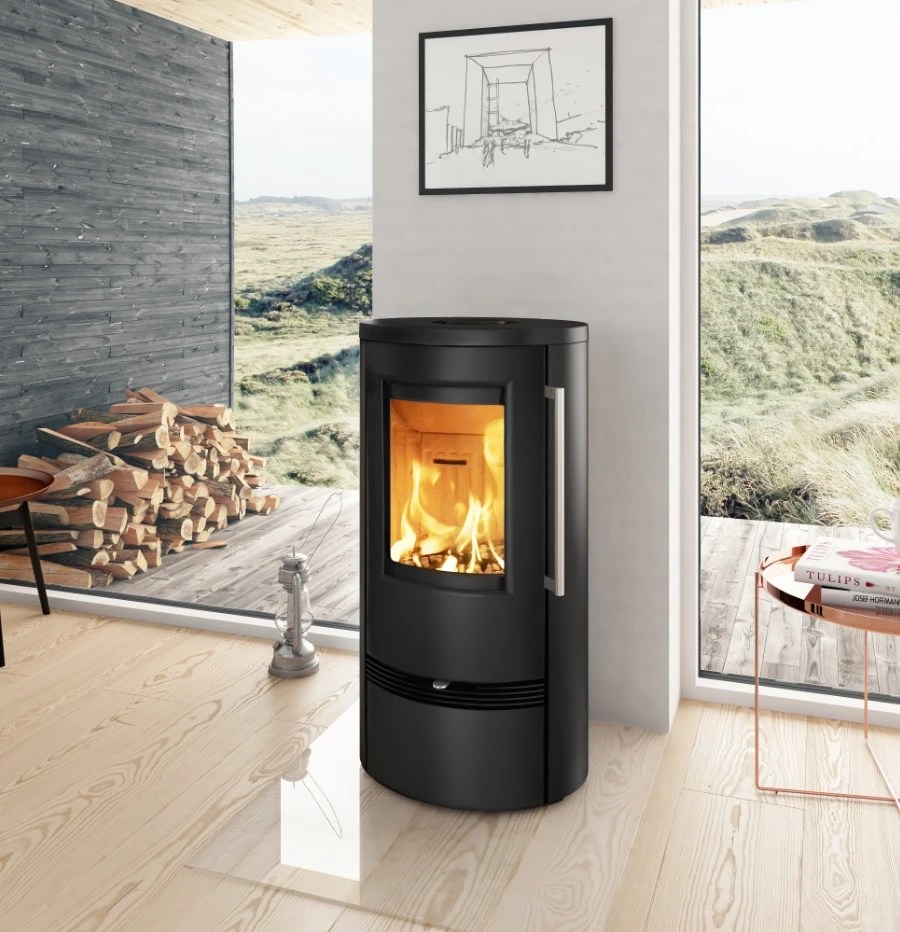

TT21RL

Small details. Big difference

Small details make a big difference. And that is also true of the TT21RL. The stove is just 8 cm lower in height than its big sister, the TT21R. This makes the stove more compact, which may be required where ceilings are low. The firewood compartment is screened by a concealing cover, giving the stove an elegant look.

It’s so easy to operate the stove that anyone will soon get used to it, which makes it particularly suitable for rental holiday homes.



TT21RL, brændeovn, brændeovnslåge, TT21-serien, brændeovn i aktion
Effect

Nominal effect in kW: 5
Operating range in kW: 3-7
Efficiency %: 83,4
Heats m2: 30-120

Available accessories

Log stopper
Form plate
Fresh air collar
Soapstone top plate
Black handle

 Specifications

Weight in kg: 119
Fresh air connection possible: Yes
Convection stove: Yes
Airwash: Yes
Ashdrawer: Yes
Controlhandle: 1
Connection at the top or rear: Yes/Yes
Colour Black: Yes
Warranty, years up to: 5

Approvals
CE/EN 13240 – HETAS, DEFRA(Smokeless zones), 15A, VKF, SINTEF, DINplus, BimSchV 1+2 * Half-insulated flue ** Non-insulated flue

TT20-serien, brændeovn, brændeovnshygge

Dimensions in mm

Flue pipe connection diameter: 150
Combustion champer width/depth: 340/271

Distance to flammable objects

Behind the stove: 150
Behind the stove with insulated pipe: 100
To the side: 350
To the side with insulated pipe: 350
With 45° corner setup: 125
With 45° corner setup with insulated pipe: 100
Furnishing distance front: 1000

energimærkning stregtegning, TT21RL montering, montering af TT20 og TT21, stregtegning

Downloads

DOP/DECLARATION OF PERFORMANCEUSER AND INSTALLATION MANUALENERGY LABELDATA SHEET
